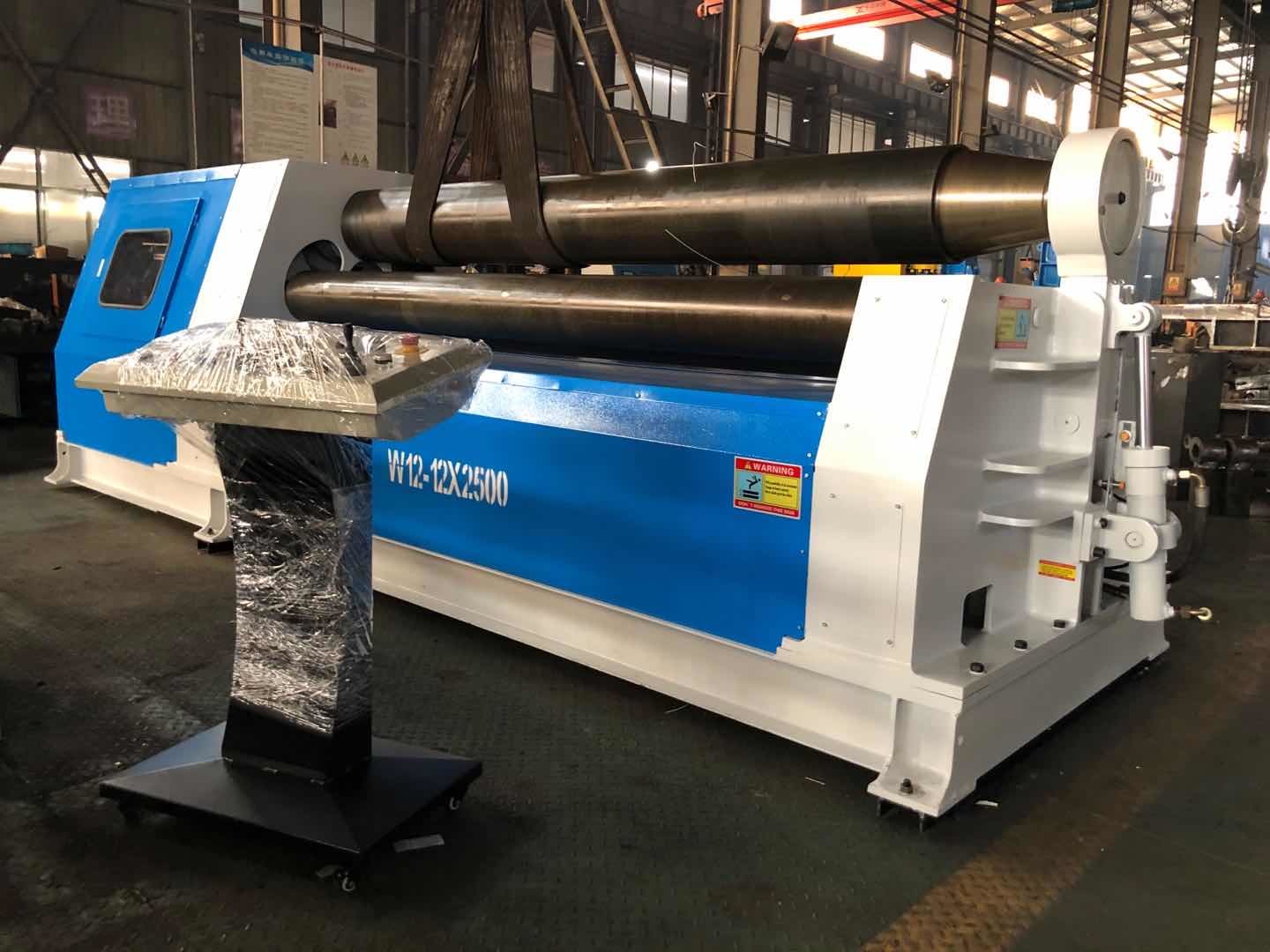

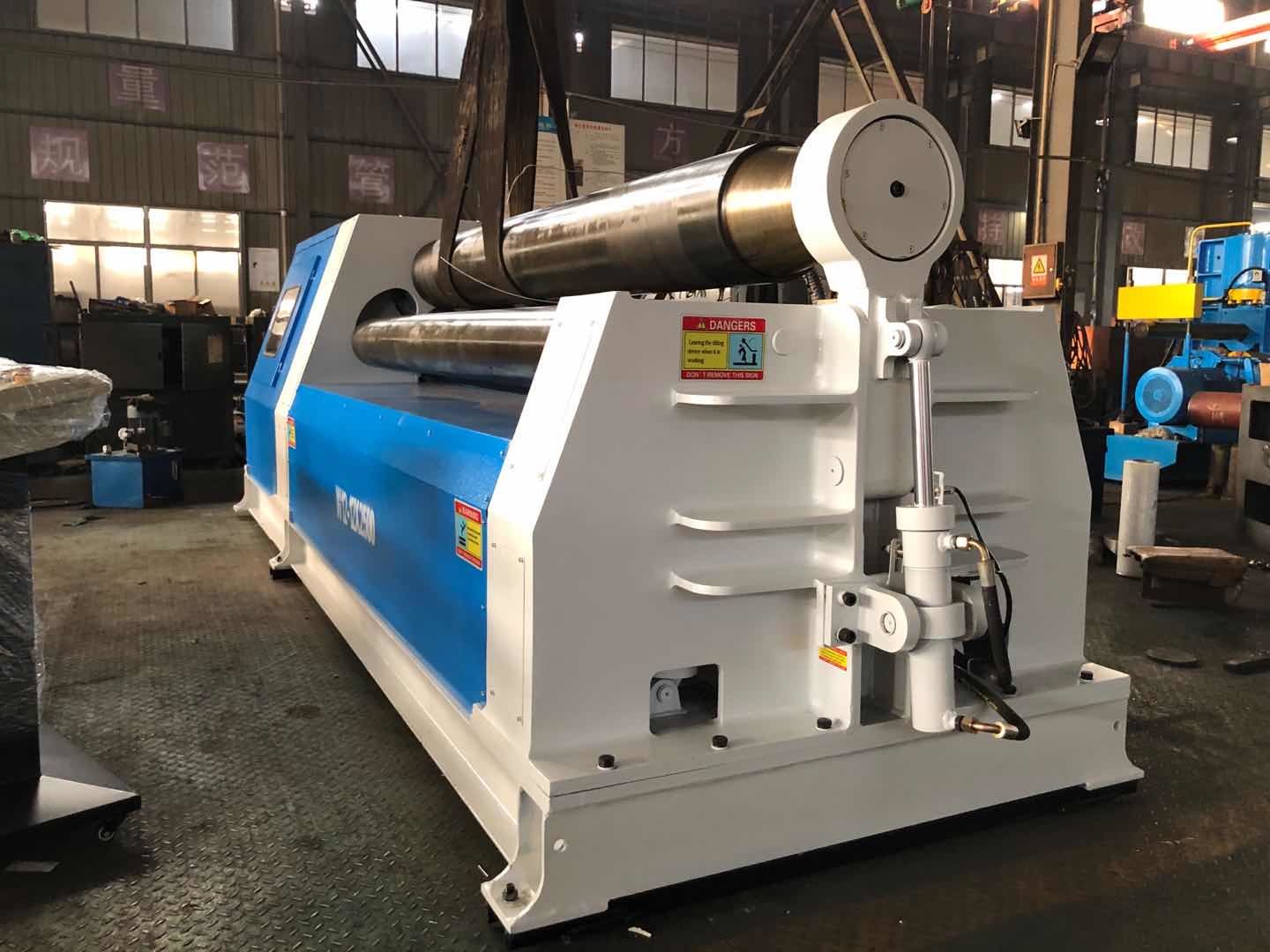

10x2500mm Four Roller Hydraulic Steel Plate Rolling machine for
Barrel
The machine has pre-bending function for plate edge ,and can bend
roll the plate one time without any thing re-rolling with
combined procedure or prebending and bending roll into shape. The
upper roller is the main drive roll, the down roller and two side
rolls up-and-down movement is controlled by hydraulic drive. The
up-and-down displacement of the down and side rollers are
controlled by computer..Automatic leveling, display by screen ,
high synchronization precision ±0.2MM.Turnover bearing body dumping
and reset is done through hydraulic transmission.The upper roll end
has balance equipment to be convenient take of the rolled cylinder
and working pieces.There are moveable independent operation table
for easy moveable operation.
Main Structural Features:
♦ The four-roller bending machine adopts a torsion-axis synchronous
structure, and the four-roller coiling machine
has high precision and roundness after being rolled up!
♦ Full hydraulic motor drive, four-roller coiling machine is
environmentally friendly and energy efficient.
♦ Straight side is short and the pre-bending effect is good! More
suitable for roll cones .
♦ The four-roller reeling process is completed in one pass,
including bilateral pre-bending. The four-roller reeling
machine is fast, efficient, and easy to operate, requiring only one
operator .
♦ With automatic alignment and clamping function, the plate will not
slide and run off.
♦ The four-roller bending machine has anti-overload and hydraulic
protection functions.
♦ With anti-wear, permanent lubrication-free features.
♦ The diameter of the reel is small (the four-roll bending machine
can roll a cylinder that is less than 1.1 times the
diameter of the upper roller, and the linear sliding-guided rolling
machine can have a diameter of 1.4-0.5 times the
diameter of the upper roller).
Application:
The machine is suitable for bending and forming of metal plate, and
can do rounding cambering word, and coning work in a certain
rang,The machine has a plate-end pre-bending function, and the
width of remaining straight edge is small, and has high word
efficiency. It can do rough plane calibrating of metal plate. It is
ideal bending roll machine for all kinds of metal working industry
like energy, transportation ,petroleum, chemical,
shipping-building, boiler with high technology, full function, high
precision and easy in operation character.
Technical parameter :
Model | Max.Roll Thickness | Max.Roll width | Upper roller diamater | Side Roller Diemater | Motor |
mm | mm | mm | mm | Kw |
W12-4x1500 | 4 | 1500 | 140 | 120 | 2.2 |
W12-6x2000 | 6 | 2000 | 190 | 170 | 3 |
W12-6x2500 | 6 | 2500 | 190 | 170 | 3 |
W12-8x2500 | 6 | 2500 | 210 | 190 | 7.5 |
W12-12x2000 | 12 | 2000 | 270 | 250 | 11 |
W12-12x3000 | 12 | 3000 | 300 | 270 | 11 |
W12-16x2500 | 16 | 2500 | 300 | 270 | 11 |
W12-16x4000 | 16 | 4000 | 390 | 360 | 18 |
W12-20x2000 | 20 | 2000 | 330 | 300 | 11 |
W12-20x3000 | 20 | 3000 | 360 | 330 | 15 |
W12-25x2500 | 25 | 2500 | 390 | 360 | 18.5 |
W12-30X2500 | 30 | 2500 | 390 | 360 | 18.5 |
W12-30x3000 | 30 | 3000 | 430 | 390 | 22 |
W12-35x3000 | 35 | 3000 | 460 | 420 | 30 |
W12-45x2500 | 45 | 2500 | 460 | 420 | 30 |
W12-50x2500 | 50 | 2500 | 510 | 460 | 45 |
W12-65x3000 | 65 | 3000 | 650 | 550 | 55 |
