Sheet Metal Plate Bending Rolling Machine 3 Roller Asymmetric 6mm 2000mm

Ask Lasest Price
Brand Name :	YUAN
Model Number :	W11F-6x2000
Certification :	CE,ISO,UV
Price :	5000-15000USD
Payment Terms :	T/T, L/C, D/A
Supply Ability :	50 sets
Delivery Time :	25 days

Add to Cart

Product Details
Company Profile

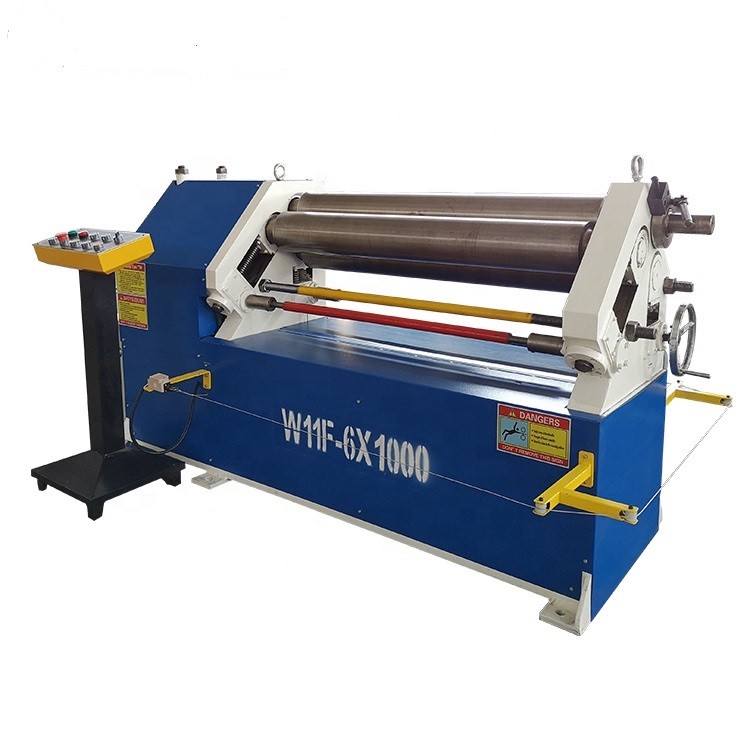

Sheet Metal Plate Bending Rolling Machine 3 Roller Asymmetric 6mm 2000mm

3-Roller Asymmetric Rolling Machine Sheet Metal Rolling Machine Metal Bending Machine
The useful length of w11f plate rolling machine is from 1000mm to 2500mm.The range of valid thickness is from 2 to 6mm.
This machine has characteristics of user-friendly design and convenient operation which is always equipped with asymmetrical solid rolls and easy initial pinch.It’s very suitable for thinner plate.
Sheet Metal Plate Bending Rolling Machine 3 Roller Asymmetric 6mm 2000mm

Simple initial pinch

Flexible manual drop end

High-efficiency machine processing

Specialize in small diameter cylinder bend

High quality solid rolls are applied to bend stainless steel

Easily-operated hand wheel is used to help lateral roll

CNC Control System 1. Special bending aircraft ,numeri-al control. 2. HMI(Human machine interface),intelligent operation. 3. Self-compensating,single operate ,high efficiency ,safe and convenient 4. Many models for choice,economic numerical control model ,TC computerized numerical control.
	Release device 1.Manual drop end 2.Turn the upper roller to certain angle ,the rollered metal cylinder can be dropped out from one side of the upper roller.
Rollers 1.The top and bottom roller are main drive roller. 2. The bottom roller lifing up and down by hand wheel. 3.The lateral roller title up and down by electro-motor
	Main motor 1.The self-braking motor allows the plate to be moved very slightly ,which is useful during initial forming 2Rotations is by means of a self-braking motor,a reduction-gear and a pinion-crown system with chain.
Standard Equipment: 1.Moveable control panel 2.Hardened rolls 3.Machine cover 4.Manual drop end	Optional equipment 1.Extended shaft for section bending 2.Safety cable 3.Digital readout

Feature:

Simple initial pinch

Flexible manual drop end

High-efficiency machine processing

Specialize in small diameter cylinder bend

High quality solid rolls are applied to bend stainless steel

Easily-operated hand wheel is used to help lateral roll

Parameters

Model	Max Thickness	Pre-bending	Max Width	Yield limit(Mpa)	Top roller(mm)	Bottom Rollers(mm)	Side Rollers(mm)
W11F-2x1000	2 mm	2 mm	1000 mm	245 Pma	110 mm	110 mm	110 mm
W11F-2x1500	2 mm	2 mm	1500 mm	245 Pma	120 mm	120 mm	120 mm
W11F-2x2000	2 mm	2 mm	2000 mm	245 Pma	130 mm	130 mm	130 mm
W11F-3x1000	3 mm	3 mm	1000 mm	245 Pma	120 mm	120 mm	120 mm
W11F-3x1500	3 mm	3 mm	1500 mm	245 Pma	130 mm	130 mm	130 mm
W11F-4x1000	4 mm	4 mm	1000 mm	245 Pma	130 mm	130 mm	130 mm
W11F-4x1500	4 mm	4 mm	1500 mm	245 Pma	135 mm	135 mm	135 mm
W11F-4x2000	4 mm	4 mm	2000 mm	245 Pma	150 mm	150 mm	150 mm
W11F-6x1000	6 mm	6 mm	1000 mm	245 Pma	140 mm	140 mm	140 mm
W11F-6x1500	6 mm	6 mm	1500 mm	245 Pma	150 mm	150 mm	150 mm
W11F-6x2000	6 mm	6 mm	2000 mm	245 Pma	170 mm	170 mm	170 mm
