CNC 3D tube bending machine for air conditioner and fridge copper
aluminium pipe bending machine

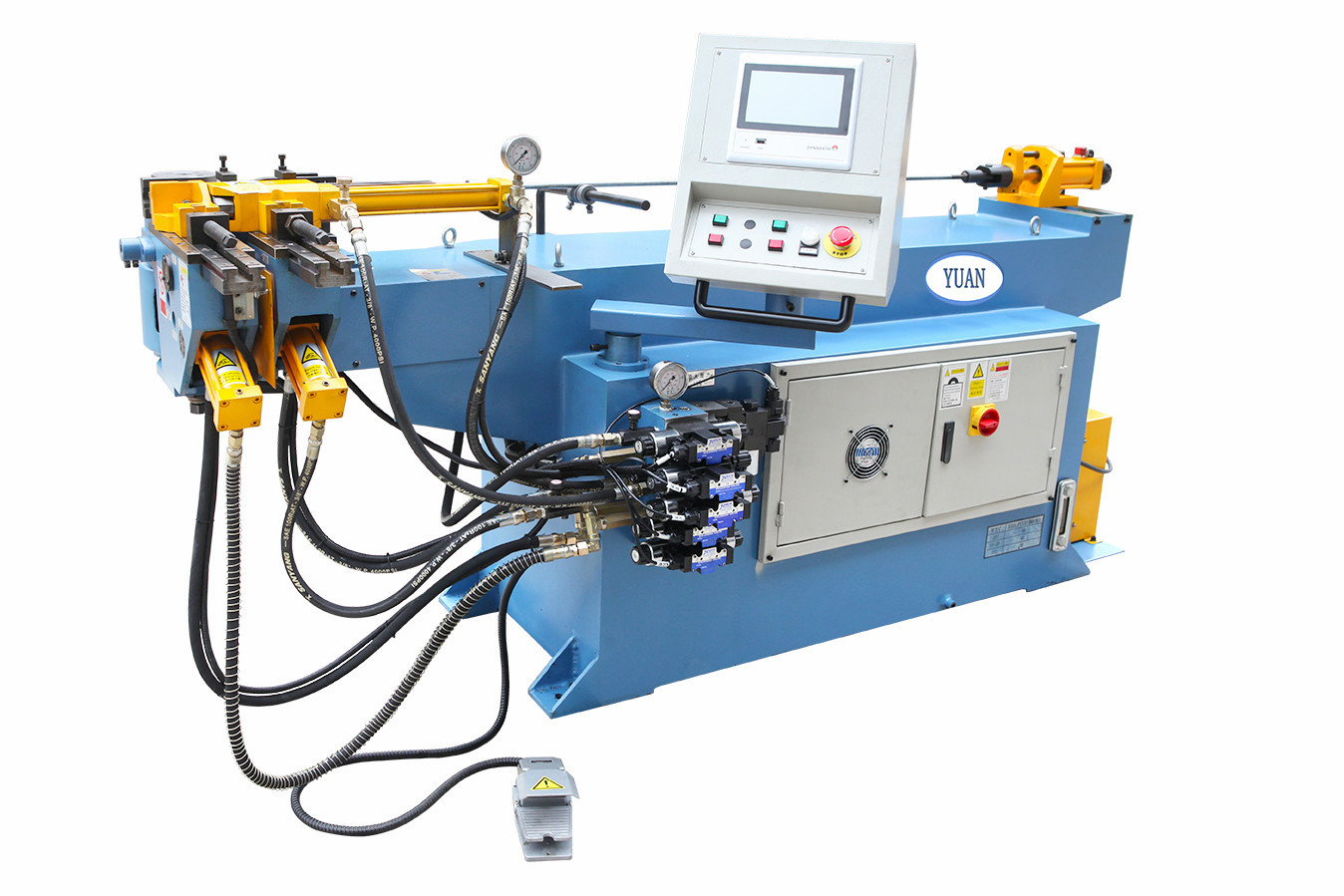

This model is a PLC controlled fully automatic CNC pipe bending
machine, which can automatically bend, automatically feed, and
automatically rotate the pipe. The feeding and rotating and bending
three axes are controlled by servo motors and servo drives.
Applicable materials: steel pipes, stainless steel pipes, iron
pipes, aluminum pipes, copper pipes, titanium pipes, galvanized
pipes, etc.
Especially suitable for the processing of small diameter pipe
fittings with many spatial angles and high precision requirements.
Such as: production of air conditioning pipes, headrests etc.
Parameters:
| Parameters | SB50CNC-3A |
| Control system | PLC control |
| Max bending capacity | Φ50x2mm |
| Bending radius | 35～200mm |
| Bending angle | 0～195° |
| Max effective mandrel length | 2200mm |
| Bending speed | 70°/sec(can be adjusted) |
| Bending accuracy | ±0.15° |
| Bending servo motor power | 7000w |
| Feeding speed | 200～800mm/sec(can be adjusted) |
| Feeding accuracy | ±0.2mm |
| Feeding servo motor power | 1500w |
| Rotating speed | 270°/sec |
| Rotating accuracy | ±0.15° |
| Rotating servo motor power | 750w |
| Total power | 9.5KW |
| System hydraulic pressure | 12MPa |
| Cooling system | water cooling |
| Size | 4400×1200×1300mm |
Features:

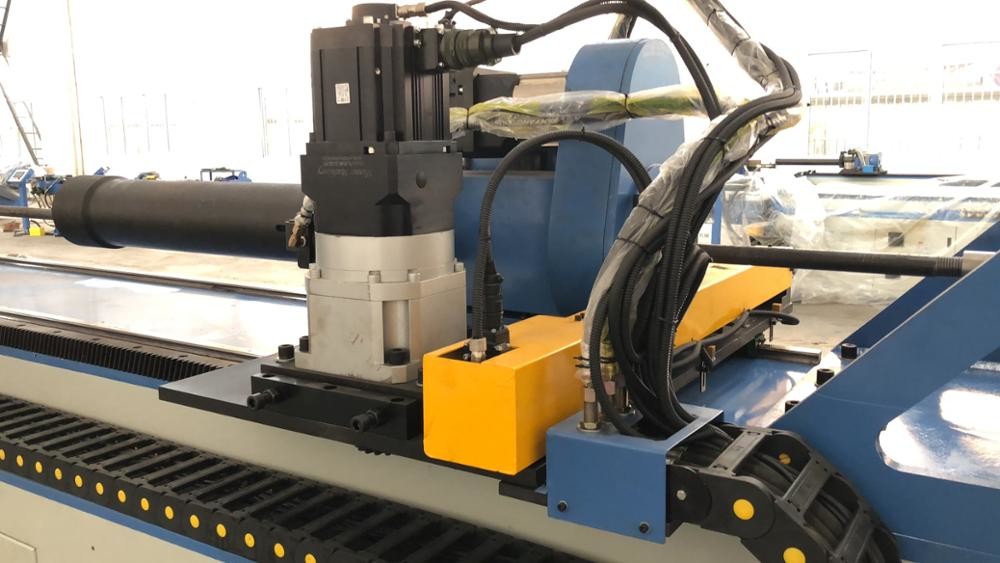

1. Feeding/rotating/bending three axis controlled by servo motor,
high precision achieves ±05-0.1mm, with strong performance and good
stability
2. The system can display the coordinate positions of X, Y, and Z
axes in real-time. It has X, Z two-axis detection, and alarm
functions. It has the function of product quantity statistics and
working hours statistics, which is convenient for production
management.
3. PLC touch screen, human-machine interactive operation, easy to
understand. The touch screen can be switched between Chinese and
English. Other languages can also be customized;
4. It has the function of automatically detecting errors and
faults. When any abnormal action or any danger occurs, the machine
will immediately stop and issue an alarm to help the operator
eliminate the fault;
5. The linear transmission part of the feeding part is composed of
imported high-precision ball screw and high-quality wear-resistant
linear guide rail, which ensures the accuracy of feeding and the
sufficient service life of the machine.
6.The bending arm adopts imported high-strength silent chain
transmission, controlled by oil cylinder, which ensures the power
of the bending pipe is abundant.
7. The hydraulic system mainly uses imported brands. The hydraulic
circuit has cooling and speed adjustment devices, which are
powerful, stable, and durable.
8. High-pressure vane pump with sufficient flow, high efficiency,
and stable performance
9. Water cooling system is provided, which is convenient for users
to control the oil temperature and ensure the equipment to work
stably under high temperatures for a long time.
10. Mobile foot switch has start and emergency stop functions
11. Quality bending with wiper, mandrel, and other systems.
