    Gantry CNC Flame Air Plasma Cutting Machine Equipment 12m UL 6000mm/Min

    Ask Lasest Price
    Brand Name : YUAN
    Model Number : 2200x6000 mm
    Certification : CE,ISO,UV
    Price : 6000-25000USD
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50 sets
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    Gantry CNC Flame Air Plasma Cutting Machine Equipment 12m UL 6000mm/Min

    Gantry CNC Flame And Plasma Cutting Machine for 12 Meters

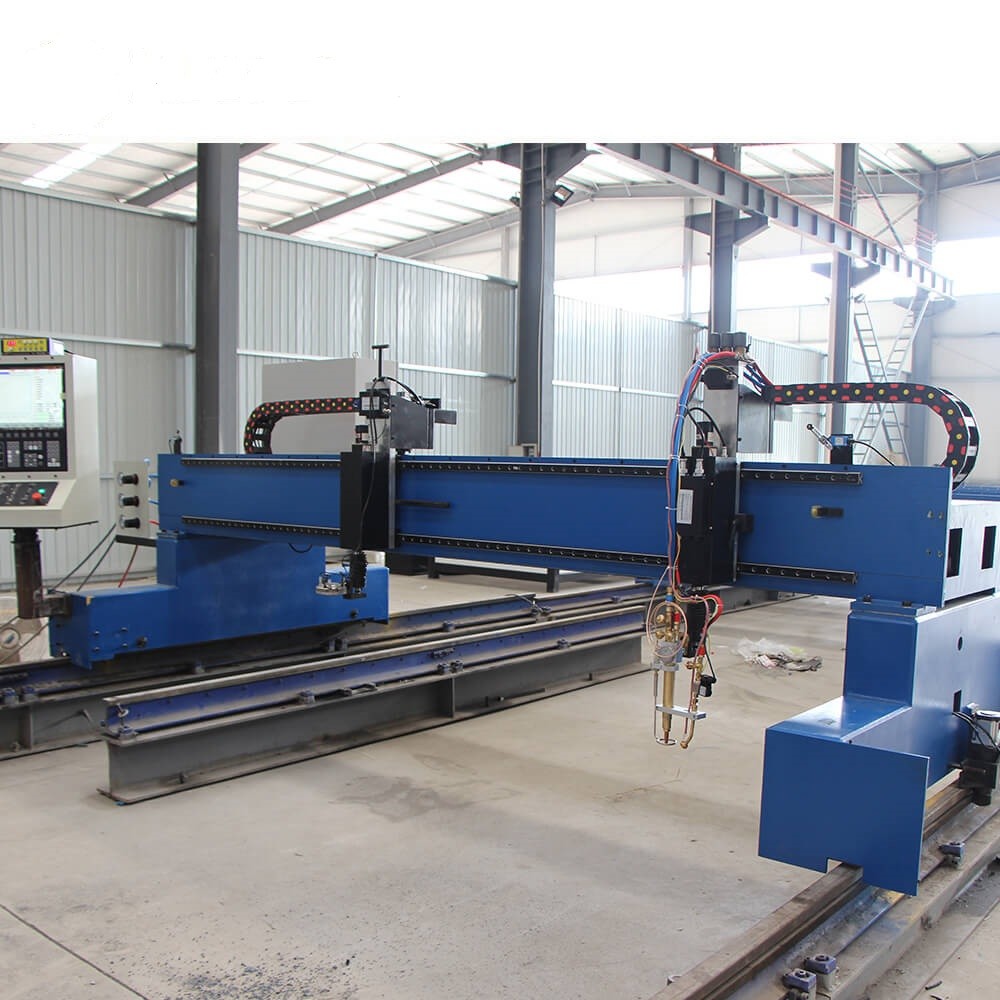

    Heavy-duty gantry-type frame structure, the beam adopts a box-type welded structure, no deformation, high-efficiency bilateral drive, compact structure, overall tempering, fully eliminate welding stress, thick and atmospheric appearance, stable and reliable performance, which is the most standard in the cutting machine industry. A universal CNC cutting machine with lateral spans of 3m, 4m, 5m, 6m|8m and other specifications, both with bilateral drive, double-axis linear guide, standard for lateral gauge 4m, effective cutting range: 3.2m Longitudinal rail length can be customized, single flame or single plasma cutting method with automatic ignition; it can also be added into flame and plasma cutting mode. The length of the longitudinal rail is 2m per section. The lengthening rail can be configured according to the user's requirements and the span of the beam can be widened. Multiple torches or bevels can be cut according to user requirements.

    Gantry CNC Flame Air Plasma Cutting Machine Equipment 12m UL 6000mm/Min

    Parameters:

    ItemSpecification
    Horizontal track space(mm)30004000500060007000
    Effective cutting width(mm)22003200420052006200
    Overall width(mm)38004800580068007800
    Cutting modeflame only,plasma only,flame and plasma
    Driving methodrack and pinion drive for X and Y axes
    Driving modedouble-side driving
    Flame cutting thickness6-200mm
    Plasma cutting thickness0-50mm(according to plasma power source)
    Cutting speed0-6000mm/min
    Empty stroke speed0-10000mm/min
    Automatic height controllercapacitive height control for flame cutting
    arc voltage height control for plasma cutting

    Applications

    This machine is mainly used for precise cutting of large panels. It is a kind of cutting and cutting equipment with high efficiency and energy saving, which can greatly improve the utilization rate and cutting efficiency of steel plates. This machine can work continuously without stopping for a long time. It can cut low carbon steel (flame cutting) and non-ferrous metals (plasma cutting) such as high carbon steel, stainless steel, aluminum, copper, etc. It is widely used in machinery, automobile, shipbuilding, petrochemical, military, metallurgy, aerospace, boiler, pressure vessel, and other industries. EL, locomotive, etc. All the specifications and components of our CNC cutting machine could be customized upon request. As a CNC cutting machine manufacturer and supplier, we offer CNC cutting machines, flame-cutting machines, underwater plasma cutting machines.desktop CNC cutting machine, and more CNC machines. Our products are ISO9001 and CE certified and exported to many countries in Europe and Southeast Asia.We have access to convenient transportation facilities by land, sea, and air.

    Rack structure
    The cross beam adopts the German Messel technology and gantry frame, which can eliminate the torsion better. The crossbeam is a non-rectangular tube structure of the box steel structure. After welding, it is annealed entirely to eliminate the internal stress so that it will not deform in long-term use. The stable frame structure makes the cutting precision higher and the cutting speed faster.
    Guide
    A horizontal guideway adopts a domestic or imported double axle core linear guideway with high precision and good guidance.
    Longitudinal guide rail with a grinding surface made of special metal has high mechanical accuracy and wear resistance.
    Servo drive system
    We use the Panasonic servo drive system, which has the function of character position detection, high precision, and short acceleration time. The drive system adopts the Japanese original planetary reducer, whose input and output errors are only 16 arcs. Meanwhile, in the transverse and longitudinal gear transmission structure, an automatic clearance compensation device is added to enable the transmission structure to accurately execute the instructions issued by the CNC system.
    Mechanical transmission device
    All the mechanical transmission systems adopt the meshing of the precision gear and rack with the machining accuracy of Grade 7 of the national standard.
    Nesting software
    Choose common edge, bridge, continuous cutting, micro-connection, and other cutting processes to improve the utilization rate of sheet metal, cutting efficiency.
    Operating System

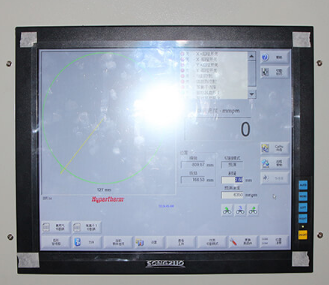

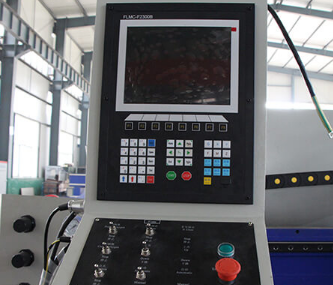

    Using the top operating system of Shanghai Jiaotong University or other world-class systems designated by users, it has a multilingual menu function, stable and reliable, high control accuracy, memory protection of power breakpoints, etc.
    Cutting Torch Lifting Device
    Cutting torch lifting rack is used to realize the automatic lifting of the cutting torch. The lifting body of a heavy cutting torch realizes the upper and lower movement of gauge through the movement of linear bearing between guide axles. The torch seat also has a 360-degree anti-collision function and protects the safety of the torch in the whole working area. The whole heavy cutting torch lifting body has three lifting modes: manual, electric, and automatic.
    Pressure gauge and relief valve
    The pressure gauge and control valve is installed on the top of the central control panel so that the operator can adjust and check the gas pressure according to the optimum state during cutting. The panel has a switch for operating solenoid valve, which can be adjusted manually and controlled automatically by the numerical control system.
    Cutting power supply
    Optional plasma power sources for different materials cutting.

    Optional configuration

    Bevel cutting device
    The infinite rotary groove cutting machine is suitable for cutting V, Y, X, and K grooves of workpieces with various linear or curve combination shapes. Its unique fluid mechanism design brings great convenience.
    The straight flame cutting device
    A straight flame cutting device can be installed on the back of the gantry CNC cutting machine to complete the straight cutting of carbon steel metal.
