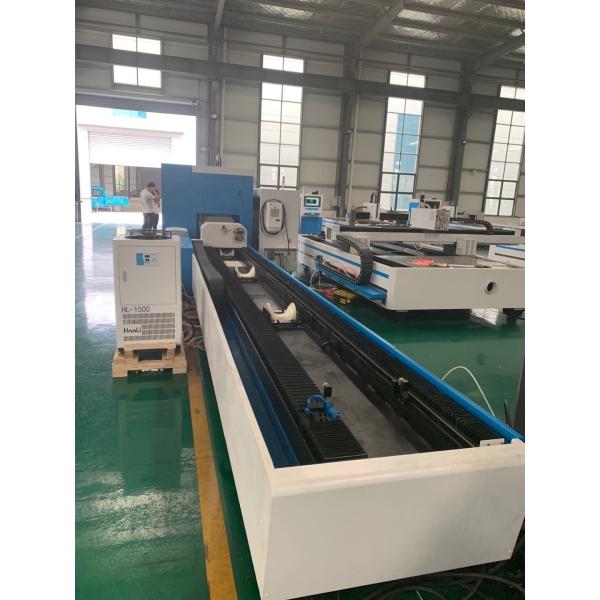

metal tube laser cutting machine can cut the following metal tubes: round tube, square tube,
rectangular tube, D-shaped tube, triangle tube, elliptical pipe and
other diameter imaginable special-shaped pipe angle steel, channel
steel and H-shaped steel. The metal tube cutter is suitable for
cutting materials like: carbon steel, stainless steel, galvanized
iron, alloy, copper, aluminum and other metals. The cutting system
of the automatic metal laser tube cutter machine can cut on any
side of the pipe or along the length of the pipe, and different
processing procedures can be automatically completed in one
equipment at a time. The system can cut square tube, round tube,
rectangular tube, flat tube and other stainless steel, carbon
steel, aluminum alloy, titanium alloy, bronze and other metal
materials. It is a professional laser tube processing with less
floor area, high degree of automation, faster processing
efficiency, more flexible processing graphics and lower processing
cost.
Metal Tube Laser Cutter Features:
1. The core drive components and control system are imported parts,
with high acceleration and stable dynamic performance.
2. It can realize automatic feeding, alignment and measurement of
tube material, and realize efficient cutting.
3. The electric control box is equipped with intelligent
temperature control system to realize stable operation under
various extreme weather conditions such as high temperature and low
temperature.
4. The intelligent dual temperature control cold water system
realizes the independent control of the laser and the optical
system, and realizes the stable operation in the harsh environment.
5. The metal laser tube cutter adopts the automatic discharge
system, which can recover the processed workpiece, reduce manual
intervention.
6. The laser pipe cutter adopts the design of self-centering chuck,
which has the advantages of light weight, high dynamic response and
rotating gas supply mode.
7. It can process and cut a variety of different tube shapes, sizes
and thicknesses.
Metal Tube Laser Cutter Parameters:
| Model | 6020 |
| Length of Tubes | ≤6m |
| Diameter of Tubes | Φ20mm-Φ220mm |
| Chuck Rotate Speed | 120m/min |
| X,Y Axes Speed | 80m/min |
| Position Accuracy | ±0.03mm |
| Reposition Accuracy | ±0.02mm |
| Power | 380v,50hz,3ph |
Laser protective window and enclosed cover
Laser cutting position adopt half cover design, used laser
protective glass as observation window more safer |  |
High-precision linear module beam,
higher precision and good dustproof effect;
so as to extend the service life |  |
 | Front pneumatic self-centering chuck
Professional pneumatic self-centering chuck no need to replace the
jaws;
can effective clamp:
square tube: 10mm-225mm;
round tube: 10mm-225mm;
one-click opening to reduce non-production time |
Rear pneumatic self-centering chuck Professional pneumatic self-centering chuck
no need to replace the jaws,
one-click opening to reduce non-production time |  |
Pneumatic roller support Pneumatic roller support to avoid pipe sagging and deformation |  |
