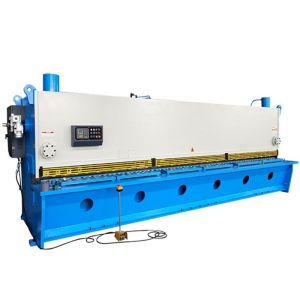

QC11K 16*6000 automatic guillotine shearing machine for thicker plate 18mm 20mm 40mm

1.The second generation of shear.
2.Welded steel plate construction, heating to eliminate stress,with high strength and good rigidity.
3.Advanced integrated hydraulic system with and excellent reliabitity quality.
4.Rapidly,accurately and conveniently adjusting the blade clearance by motor
5.The adjustable rake angle can minimize plate deformation.
6.As the cutting beam has been designed in inner-inclined structure,it is easy for plates to fall down and the accuracy of products can be also guaranteed.
7.Shearing in sections,shadow-line cutting.
8.Counter for the motorized back gauge.
9.Back support device (optional).

Hydraulic system
Adopt integrated hydraulic control system, more reliable and easy for maintenance.Hydraulic system is from Bosch
-Rexroth,Germany.All pipes, flange and joint with vibrations proof and leakage proof design and setting All seals in cylinder is
Volqua from Japan,the most famous brand,good quality and high performance

Electrical system
Electrical Cabinet under the standard of IP65, Electrical under international CE Standard, safe and reliable, strong anti
interference capability.Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal
switch,easy to operate.Front Side Covers with safety switches, Back light safety guards,Foot pedal conforming to CE regulation.

Blade Adjust and Cutting Precision:
Shearing angle is Variable, which can reduce the shearing deformation of sheet metal and can shear much thicker sheet metal.
Function of shearing in sections, function of aligning with light.Upper blade holder has inward tiling structure to facilitate
material feed in and also enhance accuracy of the work piece.
Rectangular blades with four cutting edges to prolong working life, adjustable shearing angle to reduce deformation of the sheet.

Configuration

	Hydraulic system Brand: Bosch-Rextith Original: Germany Domestic famous valve, make sure the best quality of the machine
Blades gap adjust motor Brand: YUAN Original: China Motor control blade gap and cuting angle adjustment, it's easy and safe to adjust the blades gap when the thickness of metal sheet is different.
	Clamp and blade Brand: YUAN Original: China High quality stop in, to ensure the sheet metal to be press well when do shering. Sharp blade to make the machine shearing fast and with high precision
CNC Control system MD11 Control system, ecnomic price with easy operating, our standard control system. E21S,DAC310, DAC360 control system can be optional
	SUNNY Pump American world famous brand for hydraulic pump performs well and provides great power for the whole hydraulic system
Rear Pneumatic Sheet Support Rear pneumatic support system provides support and allows more precise cuts by keeping the material lifted throughout the cut, avoiding hanging down the wide and thin sheets.
